Name: Gold Plated High Durability Spring Test Probe
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

خونه > محصولات > سنجه های آزمایشی بهار >

Gold Plated High Durability Spring Test Probe

gold plated spring test probe,high durability test probe,spring probe with warranty

high durability test probe

spring probe with warranty

محل منبع:

چین

نام تجاری:

WINNER

گواهی:

ISO9100

با ما تماس بگیرید

درخواست نقل قول

Gold Plated High Durability Spring Test Probe

جزئیات محصول

نام محصول:

سُند آزمون بهار

هرزه:

PB، رنگ طلایی

پیستون پایین:

BeCu/SK4، روکش طلا

TOP Plunger:

SK4 (Be Cu) / روکش طلا

بهار:

SWPB (SUS) / روکش طلا

در دسترس بودن:

اندازه های سفارشی موجود است

پوشش:

اندود

رتبه بندی فعلی:

تماس با مقاومت:

حداکثر 100 موم

پهنای باند:

-0.20dB @ 19.6GHz

القاء:

1.17nH

کپتانس:

1.45 pF

سکته مغزی:

0.6 میلی متر

ضربه ی نامی:

0.5 میلی متر

نیروی بهار:

25 گرم @ 0.5 میلی متر

عمر مکانیکی فراتر می رود:

200K

برجسته کردن:

gold plated spring test probe,high durability test probe,spring probe with warranty

high durability test probe

spring probe with warranty

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

3000 قطعه قطعه

قیمت

999

جزئیات بسته بندی

بسته بندی خنثی یا با آرم OEM

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، وسترن یونیون، T/T

قابلیت ارائه

100000 رول در ماه

محصولات مرتبط

Gold Plated High Durability Spring Test Probe

بهترین قیمت رو بدست بیار

Double plunger, push fit test probe for fine pitch components.

بهترین قیمت رو بدست بیار

Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing

بهترین قیمت رو بدست بیار

Gold Plated Spring Test Probe with 1A Current Rating and Custom Sizes for BGA Testing

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Gold-Plated Spring Test Probe | High Durability Pogo Pin for Electronic Contact Testing

Electric Cable Switching Probe YF DE2-042BF62-01C0

High Efficiency BGA Testing Probes - Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Production Specifications

Product Images

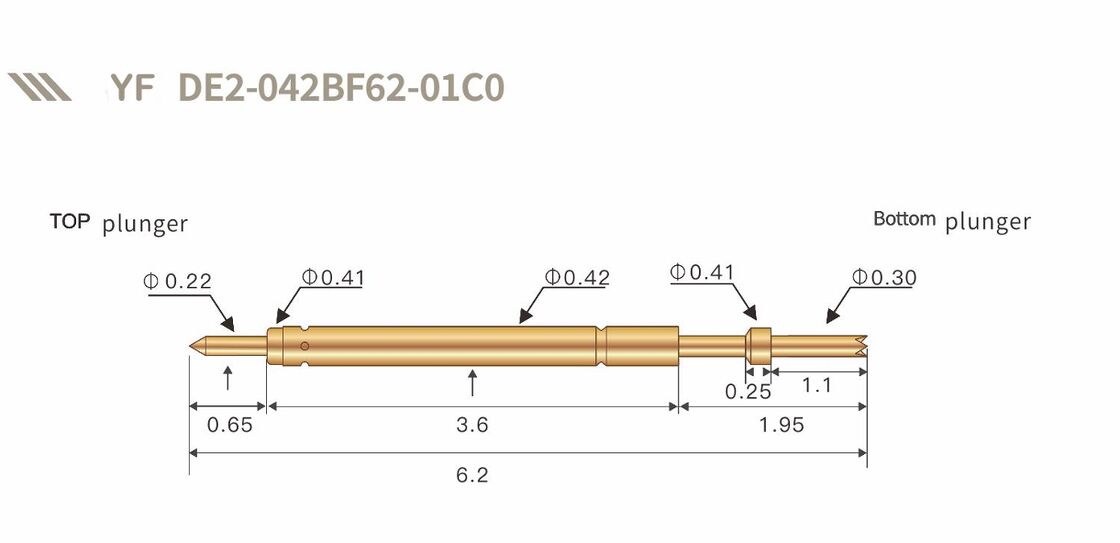

Detailed Component Illustration

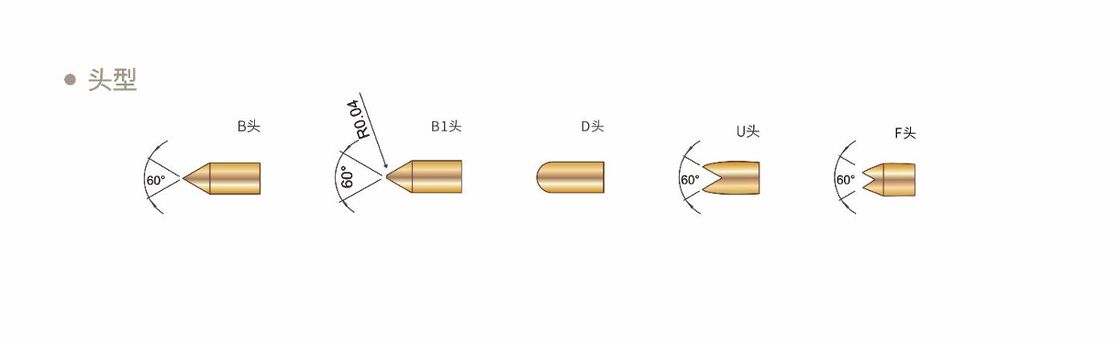

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
